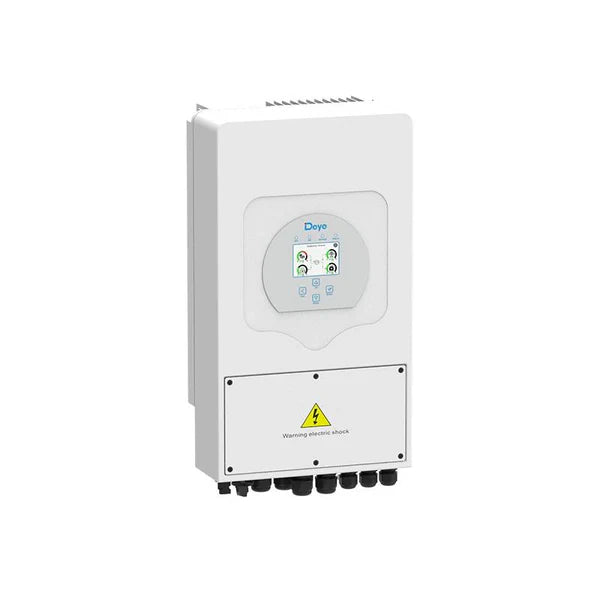

8kW Deye Hybrid PV Inverter 48V( New Model)

DEYE 8KVA Hybrid Inverter MPPT LV + WiFi

Description:

This 8kW hybrid inverter is a versatile and efficient solution for residential and small commercial solar energy systems. Designed for performance, reliability, and ease of use, it supports multiple battery types, features dual MPPT tracking, and delivers fast, intelligent energy management with internet-based monitoring.

Performance & Efficiency

• Rated power output: 8000W

• Maximum output: 8800W

• Surge power: 2× rated output (10 seconds)

• Maximum inverter efficiency: 97.6%

• European weighted efficiency: 97%

• MPPT tracking efficiency: 99.9%

• Supports self-consumption ratio up to 80% with DC/AC ratio of 1.3

• Optimized for double-sided PV modules

Battery Compatibility

• Supports lithium-ion and lead-acid batteries

• Battery voltage range: 40V – 60V

• Charge/discharge current: Up to 190A

• 3-stage charging with equalization

• BMS auto-adaptation for lithium batteries

• Optional external temperature sensor

PV Input (Solar)

• Max DC input: 10,400W

• PV input voltage range: 100V – 500V (rated at 370V)

• MPPT operating range: 125V – 425V

• Start-up voltage: 150V

• Two MPPTs with 2+2 string configuration

• PV input current: 18A + 18A

AC Output & Grid Features

• AC output: 120/240V (split phase), 208V (2/3 phase), 230V (single phase)

• Frequency: 50/60Hz auto-adjust

• Rated output current: 33.4A / 35A

• Max output current: 38.3A / 40A

• Continuous pass-through: 50A

• Grid type: Compatible with single, split, and 2/3 phase

• THD: <3% (linear load <1.5%)

Smart & Reliable Operation

• LCD touchscreen and physical buttons for easy configuration

• Wi-Fi port enabled (Wi-Fi dongle optional)

• Remote monitoring via app and browser

• Grid-tied to off-grid auto-switch in under 5ms

• Zero-export mode with <200ms reaction time

• Programmable charge/discharge schedule

• Supports wind and solar DC inputs

• Expandable: Up to 16 inverters in parallel

• Retrofit-ready for existing solar systems

Built-in Protections

• Arc fault detection (non-EU models)

• PV lightning protection

• Anti-islanding and polarity reversal protection

• Residual current monitoring

• Over-voltage, over-current, and short-circuit protection

• Insulation resistance detection

Design & Compliance

• Cooling: Active fan-based system

• Low-noise: <30 dB

• Communication: RS485 & CAN for BMS integration

• Protection rating: IP65 (outdoor-ready)

• Weight: 32kg

• Size: 680 × 420 × 233 mm

• Mounting: Wall-mounted

Certifications

• Grid standards: UL1741, IEEE1547, VDE0126, AS4777, NRS2017, G98/G99

• Safety: IEC62109-1/2

• EMC compliance: EN61000-6-1, EN61000-6-3, FCC Part 15 Class B

Warranty
5-year repair warranty.
