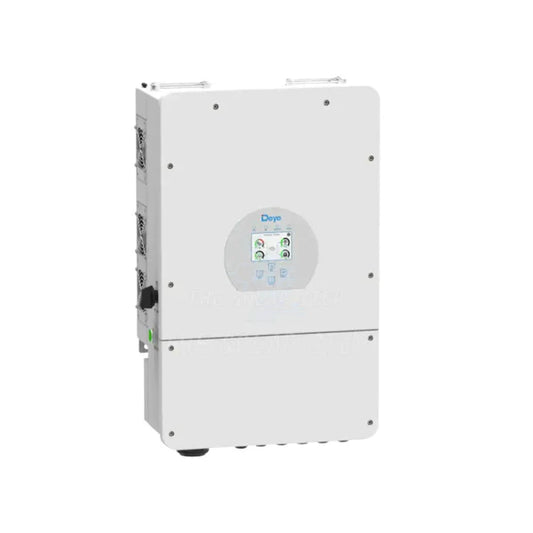

Deye 8KVA / 8KW Hybrid Solar Inverter / Dual MPPT + WIFI
Description:
The 8KW Hybrid Solar Inverter is a high-efficiency power solution designed for residential and commercial applications. With a maximum efficiency of 97.6% and dual MPPT tracking, this inverter optimizes solar energy utilization, ensuring maximum power conversion. It seamlessly transitions between grid-tied and off-grid modes within 5ms, ensuring uninterrupted power supply.
Equipped with WiFi connectivity, this inverter supports real-time monitoring via a mobile app or web browser. It is compatible with lithium-ion and lead-acid batteries, offering a programmable charging and discharging schedule to enhance battery life and energy management. The IP65-rated enclosure ensures durability for outdoor and indoor installations.
Key Features:
- 8KW Rated Power – Ideal for grid-tied and off-grid solar systems.
- 10400W Maximum PV Input Power – Supports high-efficiency solar arrays.
- Dual MPPT Controllers – Enhances solar energy tracking and conversion.
- Wide MPPT Voltage Range (125V – 425V DC) – Supports flexible PV configurations.
- Seamless Grid & Off-Grid Switching (<5ms) – Ensures uninterrupted power supply.
- Zero Export Function – Prevents system feedback into the grid.
- Battery Compatibility – Works with Lithium-ion (LiFePO4) and Lead-Acid batteries.
- Fast Response Time (200ms in Zero Export Mode) – Ideal for smart energy management.
- 16-Unit Parallel Operation – Expandable for higher power needs.
- Supports Wind & Solar DC Input – Compatible with multiple renewable sources.
- Real-Time Monitoring – Web and mobile app support via WiFi connectivity.
- Smart Cooling & Low Noise (<30dB) – Ensures efficient operation.
Technical Specifications:
Battery Input
- Battery Type: Lithium-ion (LiFePO4) / Lead-Acid
- Voltage Range: 40V – 60V DC
- Maximum Charging / Discharging Current: 190A
- Charging Curve: 3-Stage / Equalization
- BMS Communication: RS485 & CAN
PV Input (Solar Charging)
- Maximum DC Input Power: 10400W
- PV Input Voltage Range: 100V – 500V (Optimal: 370V)
- MPPT Operating Voltage Range: 125V – 425V
- Start-Up Voltage: 150V
- Maximum PV Input Current: 18A + 18A
- Number of MPPT Trackers: 2
- Number of Strings per MPPT Tracker: 2+2
AC Output & Grid Interaction
- Rated AC Output / UPS Power: 8000W
- Maximum AC Output Power: 8800W
- Surge Power (Off-Grid Mode): 2x Rated Power (10 seconds)
- AC Output Rated Current: 33.4A / 35A
- Maximum AC Current: 38.3A / 40A
- Continuous AC Pass-Through: 50A
-
Output Frequency & Voltage:
- 50Hz / 60Hz
- 120/240V Split Phase, 208V (2/3 Phase), 230V Single Phase
- Grid Compliance: THD <3% (Linear Load <1.5%)
Efficiency & Protection
- Maximum Efficiency: 97.6%
- Euro Efficiency: 97%
- MPPT Efficiency: 99.9%
-
Integrated Protection Features:
- PV Arc Fault Detection
- Anti-Islanding Protection
- PV Input Lightning Protection
- Residual Current Monitoring
- Overcurrent, Short Circuit, & Overvoltage Protection
Certifications & Compliance:
- Grid Regulations: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727
- Safety Standards: IEC62109-1, IEC62109-2
- Electromagnetic Compliance (EMC): EN61000-6-1, EN61000-6-3, FCC Class B
General Specifications:
- Operating Temperature: -25°C to 60°C (>45°C Derating)
- Cooling Method: Smart Fan Cooling
- Noise Level: <30dB
- Weight: 32kg
- Dimensions: 680mm x 420mm x 233mm
- Protection Rating: IP65 (Weatherproof)
- Installation Type: Wall-Mounted
What’s in the Box:
- 1 x 8KW Hybrid Solar Inverter
- 1 x WiFi Monitoring Dongle
- 1 x User Manual
Installation & Warranty:
- 5-Year Manufacturer Warranty
- Professional Installation Required – Must be installed by a qualified electrical wireman or master electrician.
- Valid Certificate of Compliance (COC) Required – Installation must comply with SANS 10142 standards.
- Warranty Claims – Must include installation photos, a valid COC, and proof of a qualified installer.
