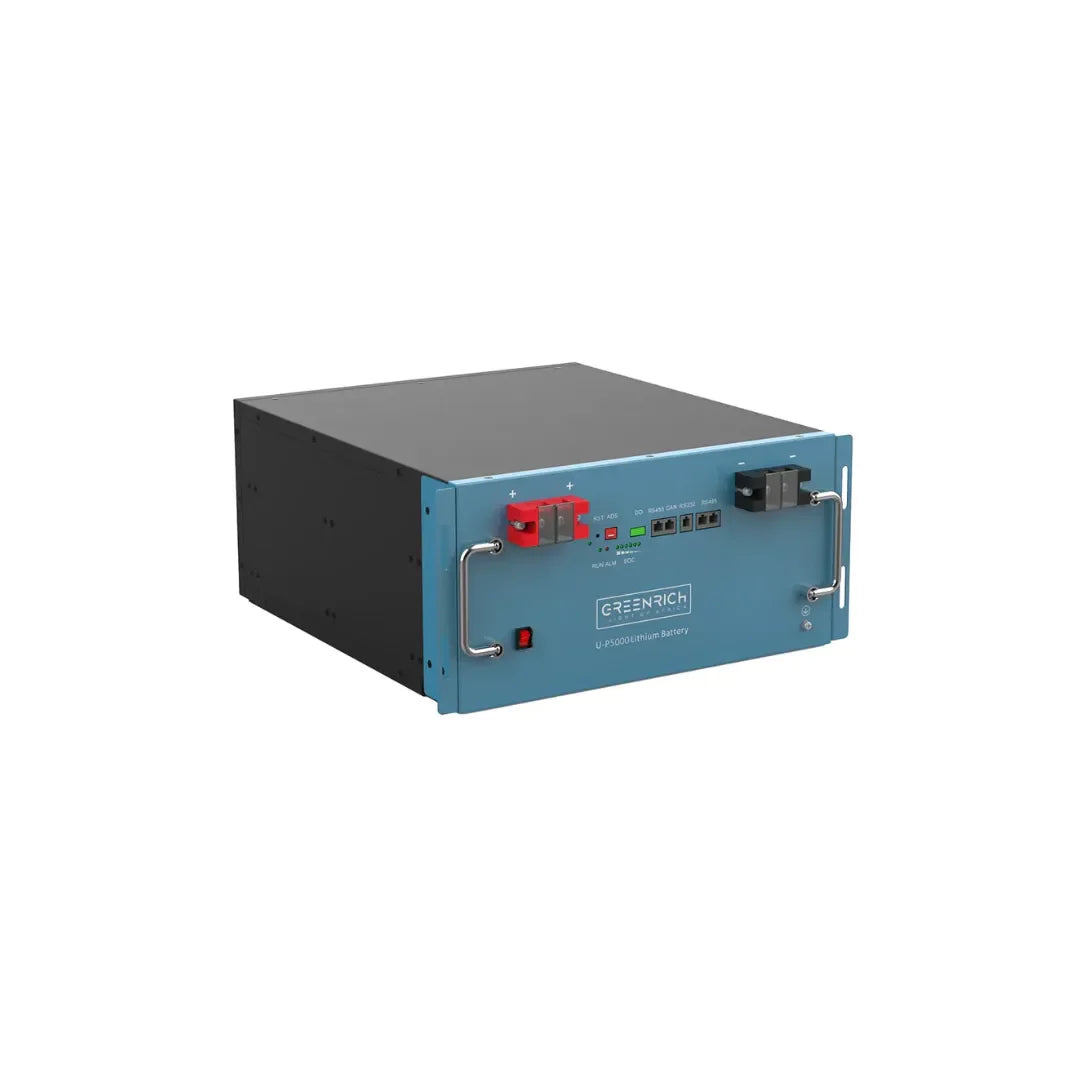

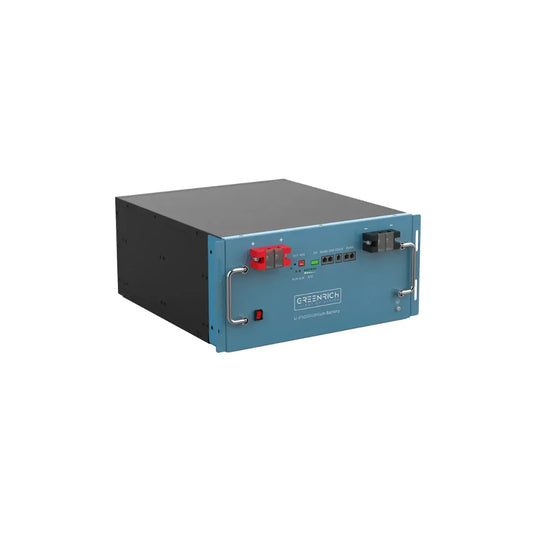

Greenrich 5kWh UP5000 1.5C (7500w/4960Wh) Lithium-iron Battery

Greenrich 5kWh UP5000 1.5C Lithium-Ion Battery – High-Performance Energy Storage

Description:

The Greenrich UP5000 5kWh 1.5C Lithium-Ion Battery is a high-performance energy storage solution designed for solar, backup power, and off-grid applications. With a 1.5C discharge rate, 7.5kW peak output, and over 6,000 cycles, this battery offers long-lasting, efficient, and reliable power storage for residential and commercial setups.

Key Features:

• High-Capacity Storage & Power Output:
  • 5kWh (4.96kWh usable capacity) for consistent energy supply.
  • 1.5C discharge rate, capable of delivering 7.5kW peak power output.
• Long Lifespan & Efficiency:
  • Over 6,000 cycles at 80% Depth of Discharge (DoD) for long-term reliability.
  • 10-year warranty for peace of mind.
• Advanced Battery Management System (BMS):
  • Built-in protection against overvoltage, undervoltage, short circuits, overcurrent, and temperature extremes.
  • Dormancy function to optimize energy efficiency when not in use.
• Seamless Communication & Integration:
  • Compatible with various inverter brands via RS485, CAN, and RS232 communication.
  • Includes a 3.5mm inverter-to-battery communication cable for easy setup.
• Optimized Charging & Discharging:
  • Recommended charge & discharge rate: 43A (0.5C @ 25°C) for extended battery life.
• Durable & Safe Construction:
  • Built with high-quality lithium iron phosphate (LiFePO4) cells for stability and safety.
  • Compact, space-saving design for wall-mounted or rack-mounted installation.

Technical Specifications:

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Capacity: 5kWh (4.96kWh usable)
• Nominal Voltage: 51.2V
• Peak Power Output: 7.5kW
• Discharge Rate: 1.5C
• Cycle Life: Over 6,000 cycles at 80% DoD
• Communication Protocols: RS485, CAN, RS232
• Dimensions: 512mm x 442mm x 222.6mm
• Weight: 51kg
• Warranty: 10 years

What’s in the Box?

• 1 x Greenrich UP5000 5.2kWh Lithium-Ion Battery
• 1 x User Manual
• 1 x Inverter-to-Battery Communication Cable

Warranty & Installation Requirements:

• 10-Year Warranty included.
• Installation must be performed by a qualified electrical wireman or master electrician registered with the Department of Labour.
• A valid Certificate of Compliance (COC) must be issued post-installation to ensure adherence to SANS 10142 standards.
• Warranty claims require installation photos, a valid COC, and proof of installation by a certified professional. Failure to comply may result in a voided warranty.
