Description
Features
- Low self discharge
- High cycle and service life
- Easy wall mount or shelf rack installation
- Excellent high temperature performance
- 1C High performance lithium battery
- Advanced BMS with current limiting function Compatible with most inverters and chargers
- High energy density and conversion efficiency
- Complete with integrated Battery Management System Hubble Cloudlink integration ready for cloud monitoring Heavy duty side handles for easy handling and mounting on the wall
- Built in protection for over-charge, over-discharge & over-temperature
- CAN Bus fully integrates and communicates with leading Inverter brands
Technical Specifications
- Model Hubble AM-10
- Rated Capacity (5HR) 200 Ah
- Nominal Voltage 51.2 V Design
- Capacity 10 KWH Equalized Charge Voltage 55.2 V
- Continuous Charging Current 200A Max.
- Continuous Discharging Current 200A
- C Rating 1 C
- Weight Approx. 89 Kg
- Monitoring Optional Cloudlink
- Parallel Parallel connection up to 8 packs with full communications
- Dimensions (WxDxH) mm 673mm x 618mm x 193mm
- Ports CAN-bus, Battery Link Ports Cells Prismatic
- LiFePO4 Design Life +/- 15 Years Cycle Life Unlimited
- cycles within the Hubble Lithium 10 year warranty. Ts & Cs Apply.
- Certification CE IEC UN38.3
- Outer Package Material White bake lacquer steel case
- Operating Temperature Charging: -10 to +50°C | Humidity: 15% to 75% | Storage: 10 to +50°C
- Protection Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
Shipping & Return
Return Policies
Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item, only in the case of:
– Received the wrong item.
– Item arrived not as expected (ie. damaged packaging).
– Item had defects.
– Over delivery time.
– The shipper does not allow the goods to be inspected before payment.
The returned product(s) must be in the original packaging, safety wrapped, undamaged and unworn. This means that the item(s) must be safely packed in a carton box for protection during transport, possibly the same carton used to ship to you as a customer.
Customer Reviews

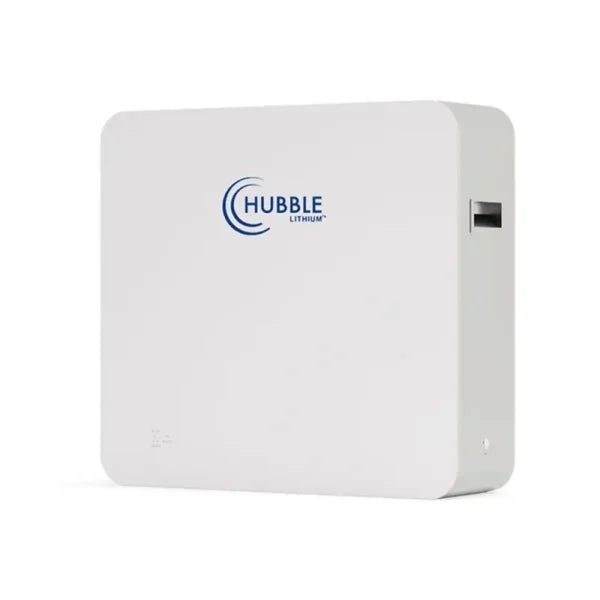

Hubble Lithium AM-10 200Ah 10kWh 51.2V Battery
