Description

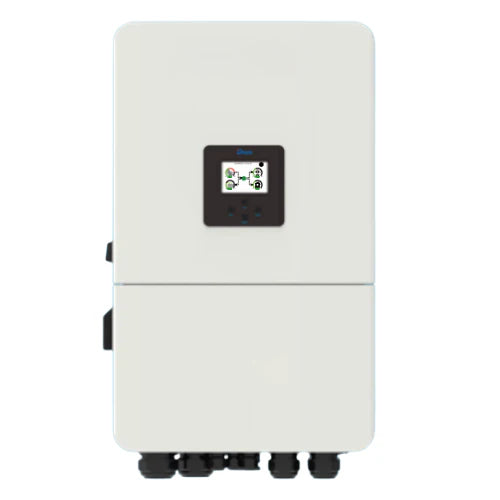

Deye 15KW Three Phase Hybrid Inverter SG05LP3-EU-SM2
ONLINE DEAL ONLY CAN BE ORDERED FOR IN STORE COLLECTION IF NEEDED
100% unbalanced output, max. output up to 50%
rated power for each phase
AC couple to retrofit existing solar system
Max. 10 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 350A
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Support storing energy from diesel generator

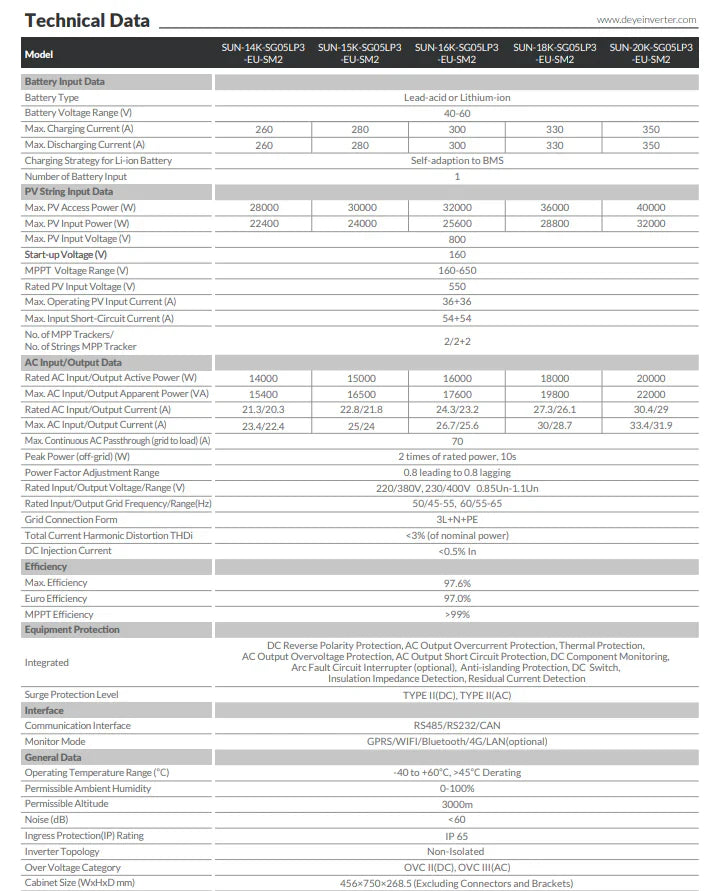

Technical Data:
Battery Input Data
Battery Type : Lead-acid or Lithium-ion
Battery Voltage Range (V) : 40-60
Max. Charging Current (A) : 280
Max. Discharging Current (A) : 280
Charging Strategy for Li-ion Battery : Self-adaption to BMS
Battery Voltage Range (V) : 40-60
Max. Charging Current (A) : 280
Max. Discharging Current (A) : 280
Charging Strategy for Li-ion Battery : Self-adaption to BMS
PV String Input Data
Max. PV Access Power (W) : 30000
Max. PV Input Power (W) : 24000
Max. PV Input Voltage (V) : 800
Start-up Voltage (V) : 160
MPPT Voltage Range (V) : 160-650
Rated PV Input Voltage (V) : 550
Max. Operating PV Input Current (A) :36+36
Max. Input Short-Circuit Current (A) : 54+54
No. of MPP Trackers/ No. of Strings MPP Tracker : 2/2+2
Size :
456×750×268.5 (Excluding Connectors and Brackets)
51.9
Warranty
5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
- Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
